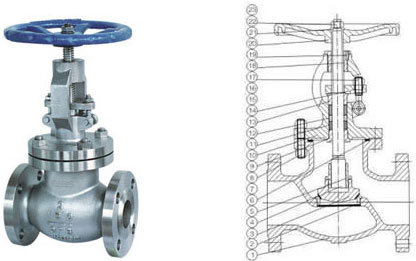

Class 150~1500 Cast Steel Globe Valve
Product Description
　
|
|
|
Class 150～1500Lbs, NPS 2～12"
Type: Through way, Y-Globe and Angle Type
Basic Design: ANSI B16.34, BS1873
Face to Face Dimension: ANSI B 16.10
Flanged Ends to ANSI B 16.5
B.W. Ends to ANSI B 16.25
Manufacturing to NACE MR-01-75 on request
OS&Y, Rising Stem, Plug Type Disc Bolted Bonnet, Threaded Seat Ring
Standard Material Specifications
|
NO.
|
Part Name
|
Carbon Steel to ASTM
|
Alloy Steel to ASTM
|
Stainless Steel to ASTM
|
|
WCB
|
LCB
|
WC6
|
WC9
|
C5
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
Body
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
2
|
Seat Ring
|
A105
|
A350 LF2
|
A182 F11
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
3
|
Disc
|
A105
|
A350 LF2
|
A182 F11
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
4
|
Stem
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
5
|
Disc Nut
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
6
|
Gasket
|
SS Spiral Wound/Graphite or SS Spiral Wound/PTFE
|
|
7
|
Bonnet Nut
|
A194 2H
|
A194 4
|
A194 7
|
A194 8
|
|
8
|
Bonnet Bolt
|
A193 B7
|
A320 L7
|
A193 B16
|
A193 B8
|
|
9
|
Backseat Bushing
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
10
|
Bonnet
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
11
|
Lantern
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
12
|
Stem Packing
|
Graphite or PTFE
|
|
13
|
Gland
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
14
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
|
15
|
Gland Nut
|
A194 2H
|
A194 8
|
|
16
|
Gland Eyebolt
|
A194 B7
|
A193 B8
|
|
17
|
Pin
|
Carbon Steel or Stainless Steel
|
|
18
|
Stem Nut
|
A439 D2 or B148-952A
|
|
19
|
Screw
|
Carbon Steel
|
|
20
|
Hand Wheel
|
Ductile Iron or Carbon Steel
|
|
21
|
Nameplate
|
Stainless Steel or Aluminum
|
|
22
|
Washer
|
Carbon Steel
|
|
23
|
Nut
|
Carbon Steel or Stainless Steel
|
Other materials (Alloy 20, AISI321, AISI347, Monel, Hastelloy, etc) are available on request
Trim Material to API 600
|
Seating
Code
|
Seat Ring
Surface
Part NO. 2
|
Disc Seat
Part NO. 3
|
Stem
Part NO. 4
|
Backseat
Bushing
Part NO. 9
|
|
1
|
13Cr
|
13Cr
|
F6
|
F6
|
|
2
|
304
|
304
|
F304
|
F304
|
|
5
|
Stellite
|
Stellite
|
F6
|
F6
|
|
8
|
Stellite
|
13Cr
|
F6
|
F6
|
|
9
|
Monel
|
Monel
|
Monel
|
Monel
|
|
10
|
316
|
316
|
F316
|
F316
|
|
13
|
Alloy20
|
Alloy20
|
Alloy20
|
Alloy20
|
Test Pressure to API 598
|
Class
|
Body Material
|
Shell Test (Hydrostatic)
|
Seat Test (Hydrostatic)
|
Seat Test (Air)
|
|
150
|
WCB
|
450psi
|
315psi
|
80psi
|
|
WC6
|
450psi
|
319psi
|
|
CF8M
|
425psi
|
303psi
|
|
300
|
WCB
|
1125psi
|
814psi
|
|
WC6
|
1125psi
|
825psi
|
|
CF8M
|
1100psi
|
792psi
|
|
600
|
WCB
|
2225psi
|
1628psi
|
|
WC6
|
2250psi
|
1650psi
|
|
CF8M
|
2175psi
|
1548psi
|
|
900
|
WCB
|
3350psi
|
2442psi
|
|
WC6
|
3375psi
|
2475psi
|
|
CF8M
|
3250psi
|
2376psi
|
|
1500
|
WCB
|
5575psi
|
4078psi
|
|
WC6
|
5625psi
|
4125psi
|
|
CF8M
|
5400psi
|
3960psi
|
Dimensions (mm) And Weights (kg)
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
150
|
L-L1
(RF-BW)
|
in
|
8
|
8-1/2
|
9-1/2
|
11-1/2
|
14
|
16
|
19-1/2
|
24-1/2
|
27-1/2
|
|
mm
|
203
|
216
|
241
|
292
|
356
|
406
|
495
|
622
|
698
|
|
L2
(RTJ)
|
in
|
8-1/2
|
9
|
10
|
12
|
14-1/2
|
16-1/2
|
20
|
25
|
28
|
|
mm
|
216
|
229
|
254
|
305
|
368
|
419
|
508
|
635
|
711
|
|
L3
|
mm
|
102
|
108
|
121
|
146
|
178
|
203
|
248
|
311
|
349
|
|
H (OPEN)
|
in
|
14-11/16
|
15-3/8
|
16-9/16
|
20-1/4
|
21-3/16
|
22-5/16
|
24-5/8
|
28
|
39
|
|
mm
|
373
|
390
|
421
|
515
|
538
|
567
|
626
|
712
|
990
|
|
W
|
in
|
7-7/8
|
9-7/8
|
9-7/8
|
11-13/16
|
11-13/16
|
13-3/4
|
15-3/4
|
17-3/4
|
24
|
|
mm
|
200
|
250
|
250
|
300
|
300
|
350
|
400
|
450
|
610
|
|
WT
(Kg)
|
in
|
22
|
29
|
42
|
64
|
77
|
105
|
154
|
288
|
507
|
|
mm
|
19
|
25
|
34
|
49
|
65
|
82
|
131
|
249
|
430
|
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
300
|
L-L1
(RF-BW)
|
in
|
10-1/2
|
11-1/2
|
12-1/2
|
14
|
15-3/4
|
17-1/2
|
22
|
24-1/2
|
28
|
|
mm
|
267
|
292
|
318
|
356
|
400
|
444
|
559
|
622
|
711
|
|
L2
(RTJ)
|
in
|
11-1/8
|
12-1/8
|
13-1/8
|
14-5/8
|
16-3/8
|
18-1/8
|
22-5/8
|
25-1/8
|
28-5/8
|
|
mm
|
283
|
308
|
333
|
371
|
416
|
460
|
575
|
311
|
727
|
|
L3
|
mm
|
133
|
146
|
159
|
178
|
200
|
222
|
279
|
638
|
356
|
|
H (OPEN)
|
in
|
15-11/16
|
17-1/8
|
18-3/16
|
22-1/16
|
24-3/8
|
27-5/16
|
38-5/8
|
44-1/2
|
41-5/16
|
|
mm
|
398
|
436
|
462
|
560
|
620
|
694
|
982
|
1130
|
1049
|
|
W
|
in
|
7-7/8
|
9-7/8
|
9-7/8
|
13-3/4
|
15-3/4
|
17-3/4
|
22-1/16
|
34
|
18-1/8
|
|
mm
|
200
|
250
|
250
|
350
|
400
|
450
|
560
|
864
|
460*
|
|
WT
(Kg)
|
in
|
31
|
43
|
57
|
86
|
130
|
168
|
280
|
385
|
724
|
|
mm
|
26
|
28
|
44
|
68
|
110
|
138
|
228
|
329
|
618
|
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
6
|
8
|
10
|
12
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
150
|
200
|
250
|
300
|
|
600
|
L-L1
(RF-BW)
|
in
|
11-1/2
|
13
|
14
|
17
|
22
|
26
|
31
|
33
|
|
mm
|
292
|
330
|
356
|
432
|
559
|
660
|
787
|
838
|
|
L2
(RTJ)
|
in
|
11-5/8
|
13-1/8
|
14-1/8
|
17-1/8
|
22-1/8
|
26-1/8
|
31-1/8
|
33-1/8
|
|
mm
|
295
|
333
|
359
|
435
|
562
|
664
|
791
|
840
|
|
H (OPEN)
|
in
|
16-3/4
|
19-3/4
|
20-1/2
|
24-3/8
|
34-7/8
|
36-11/16
|
41
|
50-3/8
|
|
mm
|
425
|
502
|
521
|
620
|
886
|
932
|
1040
|
1280
|
|
W
|
in
|
9-7/8
|
11-13/16
|
13-3/4
|
17-3/4
|
28-3/8
|
18-1/8
|
24
|
30
|
|
mm
|
250
|
300
|
350
|
450
|
720
|
460*
|
610*
|
760*
|
|
WT
(Kg)
|
in
|
39
|
58
|
73
|
120
|
327
|
482
|
700
|
900
|
|
mm
|
33
|
48
|
61
|
95
|
261
|
385
|
588
|
795
|
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
6
|
8
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
150
|
200
|
|
900
|
L-L1
(RF-BW)
|
in
|
14-1/2
|
16-1/2
|
15
|
18
|
24
|
29
|
|
mm
|
368
|
419
|
381
|
457
|
610
|
737
|
|
L2
(RTJ)
|
in
|
14-5/8
|
16-5/8
|
15-1/8
|
18-1/8
|
24-1/8
|
29-1/8
|
|
mm
|
371
|
422
|
384
|
460
|
613
|
740
|
|
H (OPEN)
|
in
|
9-7/16
|
10-1/4
|
10-1/4
|
12-5/8
|
15
|
20-7/8
|
|
mm
|
240
|
260
|
260
|
320
|
382
|
530
|
|
W
|
in
|
13-3/4
|
15-3/4
|
17-3/4
|
22-1/16
|
18-1/8
|
24
|
|
mm
|
350
|
400
|
450
|
560
|
460*
|
610*
|
|
WT
(Kg)
|
in
|
100
|
118
|
131
|
218
|
452
|
710
|
|
mm
|
75
|
94
|
105
|
185
|
340
|
630
|
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
6
|
8
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
150
|
200
|
|
1500
|
L-L1
(RF-BW)
|
in
|
14-1/2
|
16-1/2
|
18-1/2
|
21-1/2
|
27-3/4
|
32-3/4
|
|
mm
|
368
|
419
|
470
|
546
|
705
|
832
|
|
L2
(RTJ)
|
in
|
14-5/8
|
16-5/8
|
18-5/8
|
21-5/8
|
28
|
33-1/8
|
|
mm
|
371
|
422
|
473
|
549
|
711
|
841
|
|
H (OPEN)
|
in
|
9-7/16
|
10-1/4
|
27-1/4
|
35-11/16
|
40
|
45-1/16
|
|
mm
|
240
|
260
|
692
|
907
|
1015
|
1145
|
|
W
|
in
|
13-3/4
|
15-3/4
|
17-3/4
|
18-1/8
|
24
|
24
|
|
mm
|
350
|
400
|
450
|
460*
|
610*
|
610*
|
|
WT
(Kg)
|
in
|
112
|
141
|
228
|
336
|
650
|
762
|
|
mm
|
84
|
115
|
183
|
277
|
515
|
630
|
* Manual gear operator is recommended |
|
|
