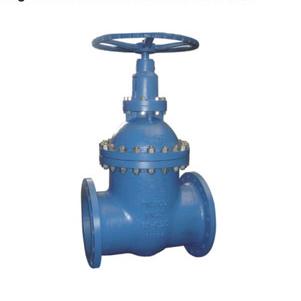

PN16~40 Cast Steel DIN Non-Rising Stem Gate Valve F15 Series
PN16~40 Cast Steel DIN Non-Rising Stem Gate Valve F15 Series
Product Description


PN16~40, DN50~400
Design and manufacture: DIN3352
Face to face: DIN3202-F15, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers''requirement.

PN16~40 DIN Non-Rising Stem gate valve F15 Series


Standard Material Specifications

NO.

Part Name

Material

NO.

Part Name

Material

1

Body

GS-C25+13Cr

12

Gland

A182 F6

2

Wedge

GS-C25+13Cr

13

Gland Flange

GS-C25

3

Stem Nut

A439 D2

14

Bolt

A193 B7

4

Stem

A182 F6

15

Nut

A194 2H

5

Gasket

SS+Graphite

16

Yoke

GS-C25

6

Bonnet

GS-C25

17

Bearing

Steel

7

Bolt

A193 B7

18

Split Ring

A182 F6

8

Nut

A194 2H

19

Nut

1035

9

Nut

A194 2H

20

Handwheel

A536

10

Bolt

A193 B7

21

Nut

A194 2H

11

Gasket

SS+Graphite

22






Dimensions(mm)

PN16

DN

50

65

80

100

125

150

200

250

300

350

400

L

250

270

280

330

360

390

460

530

630

690

750

H

305

354

402

437

496

541

699

815

914

1189

1350

W

200

200

250

300

300

350

350

400

450

500

550


PN25

DN

50

65

80

100

125

150

200

250

300

350

400

L

250

270

280

330

360

390

460

530

630

690

750

H

325

363

415

453

505

556

744

864

948

1269

1450

W

200

200

250

300

350

400

450

500

550

600

600


PN40

DN

50

65

80

100

125

150

200

250

300

350

400

L

250

270

280

330

360

390

460

530

630

690

750

H

325

370

430

480

532

589

783

888

965

1285

1512

W

200

200

250

300

350

400

450

500

550

600

600
